Hercules DJControl Jogvision

Performance & Ease of use

Hercules has put all of its experience, innovation and passion into the DJControl Jogvision, which perfectly combines performance and ease of use. Whether you’re just getting started DJing or you’ve already refined your skills, you can let your creativity run wild. Enjoy excellent precision and comfort to create your mixes using the circular displays on the jog wheels to guide your movements and perfect your scratches, and have fun with the amazing contactless AIR Control sensor. The included Serato DJ Lite software gives you instinctive control, along with tons of other features that you’ll love. Your adventure starts right here and now. It’s your turn!

$329.99

Track controls

Jog wheel with in-jog display Play/Pause, Cue, Sync and Shift

Pitch control

Pitch fader Keylock

Built-in audio

Master out, booth out and headphones out Microphone input Line (Aux) input

Air control

Filter control for left & right deck

4 RGB pads x 4 modes per deck

Hot cue bank 1 (4 cue points per bank), Hot Cue bank 2 + Sampler bank 1 (4 samplers per bank), sampler bank 2

Effects (Fx) / loop rack

4 keys per rack + 1 rotary encoder

Mixer

Per deck: 3 EQ, 1 volume fader, cue select, vumeter / Global : crossfader, headphones volume

3-band equalization

Treble, medium, bass (per deck)

Schließen

PERFORMANCE

Solidly built and featuring an ergonomic design, DJControl Jogvision is perfect for giving all of your performances a huge boost. Thanks to the displays built into the jog wheels that let you see both the track’s playback speed and your current position in the track at a glance, you’ll spend less time looking at your computer and stay focused on your mixing.

CREATIVITY

Develop your creativity with a ton of great features – including AIR Control (which lets you control the low-pass filter without any contact: your movements create incredible sound effects like Filter Push, Filter Cut and Filter Roll), the 4 drum pads (which also give you instinctive control of the different modes), and the high-quality jog wheels.

SCRATCHING

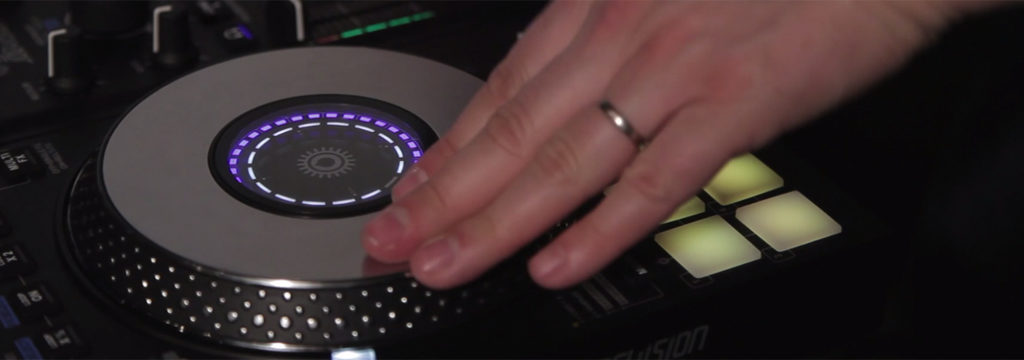

The DJControl Jogvision’s jog wheels rival those found on DJ CD players: their 5.9” / 15 cm diameter makes them easy to manipulate, while instant touch detection lets you scratch with precision and no latency. What’s more, the display built into the jog wheels shows either the instantaneous scratch position, or the scratch amplitude (to return to the starting position).

SERATO DJ LITE

You’ll love using the included Serato DJ Lite software. Just drag and drop a track stored on your computer onto one of the decks and add cue points, samples, create loops and apply great effects to make your mixes unique.

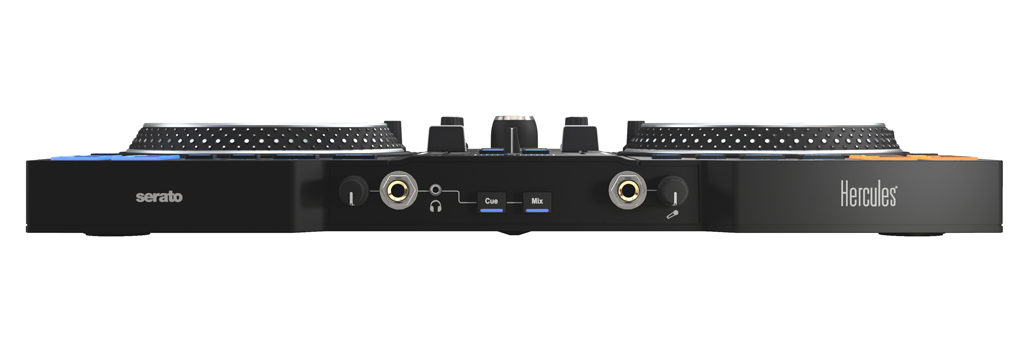

Audio

Mic: 1/4” (6.35 mm) jack microphone input

Aux: 1/8” (3.5 mm) stereo line input

Integrated built-in audio interface

Resolution 16 to 24-bit, from 44.1 to 96 kHz

Audio standards:

- ASIO + WDM in Windows®

- Core Audio in Mac OS®

Master 1-2: 2 RCA + 1/8” (3.5 mm) stereo mini-jack

Booth 1-2: 2 RCA

Headphones: 1/4” (6.35 mm) stereo jack + 1/8” (3.5 mm) stereo mini-jack

Controls Per Deck

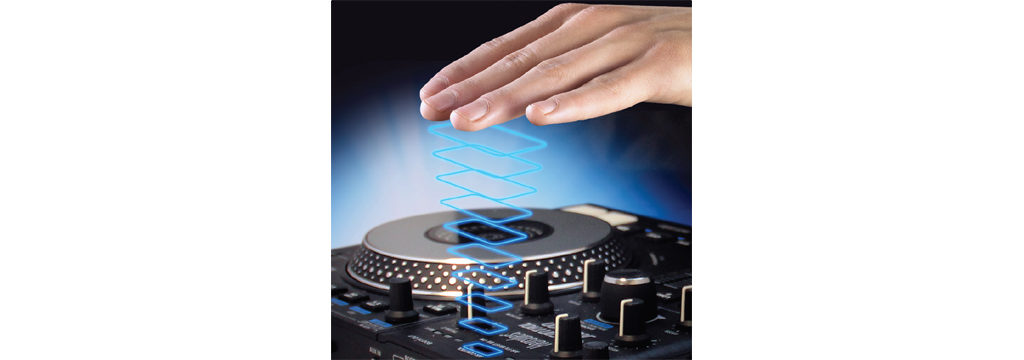

AIR Control: a proximity sensor lets you control the mix without any contact

- AIR Control turns the distance between your hand and the sensor into a modulation of the low-pass filter

- You control the low-pass filter without any contact, and your movements create incredible sound effects like Filter Push, Filter Cut and Filter Roll

- The sensor’s 12” / 30 cm range gives your hand movements an almost magical quality for your audience

2 decks

1 central mixer

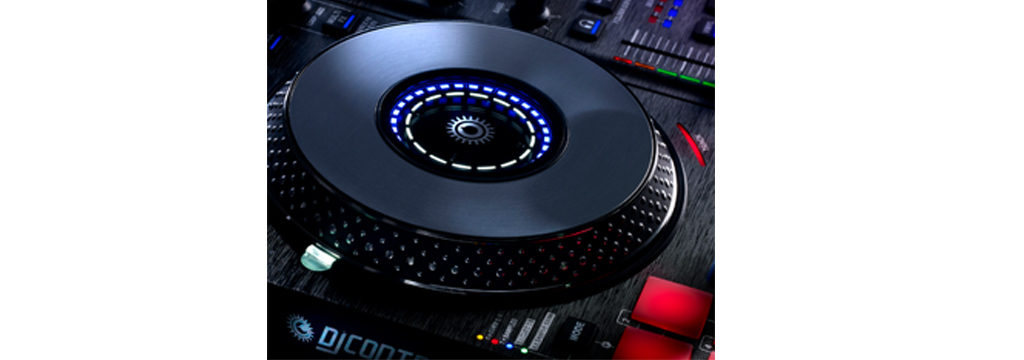

2 jog wheels:

- 5.9” / 15 cm in diameter, rivaling those found on DJ CD players

- During playback: 2 rings = 2 pieces of information

- The rotation speed of the blue ring shows the playback speed

- The position of the white ring shows the position reached in the track

- When scratching: the display shows an angular marker

- Jog wheels feature instant touch detection to SCRATCH with precision and without any latency

- A refined style: each jog wheel features an aluminum platter, and a built-in display screen

4 modes (Loop/Fx/Sample/Hot Cue) per deck

4 pads (drum pads) per deck:

- Multicolored lighting (red, green and blue)

- The pads’ lighting features a different color in Sample mode and Cue Point mode

- RGB Cue Color Match: in Cue Point mode, each pad lights up in the default color of the cue point that it controls in Serato DJ Lite for perfect integration of the hardware with the software, and instinctive control

Controls On Mixer

3-band equalization with potentiometers (bass, mids, treble)

1 volume fader per deck

1 crossfader

Controls

MIDI (extended MIDI on the faders and potentiometers)

HID

Software

To find out the system requirements for using DJUCED with your PC/Mac, please visit cette page.

To find out the system requirements for using SERATO with your PC/Mac, please visit this page.

Update the drivers.

Hercules DJControl Jogvision

Power adapter

4.1 ft / 1.25 m USB 2.0 cable
